Welcome to the First Time Setup guide for your legacy Tablo HDMI.
Before starting, please make sure that:
- You have plugged your Tablo DUAL HDMI's or QUAD HDMI's power adaptor into the back of the unit and a wall socket.
- You have connected the included HDMI cable to your Tablo and your television.
- You have turned on your television and selected the HDMI input your Tablo DUAL HDMI or QUAD HDMI is connected to.
- You have your Tablo DUAL HDMI's or QUAD HDMI's remote (included) handy for the rest of the setup process.

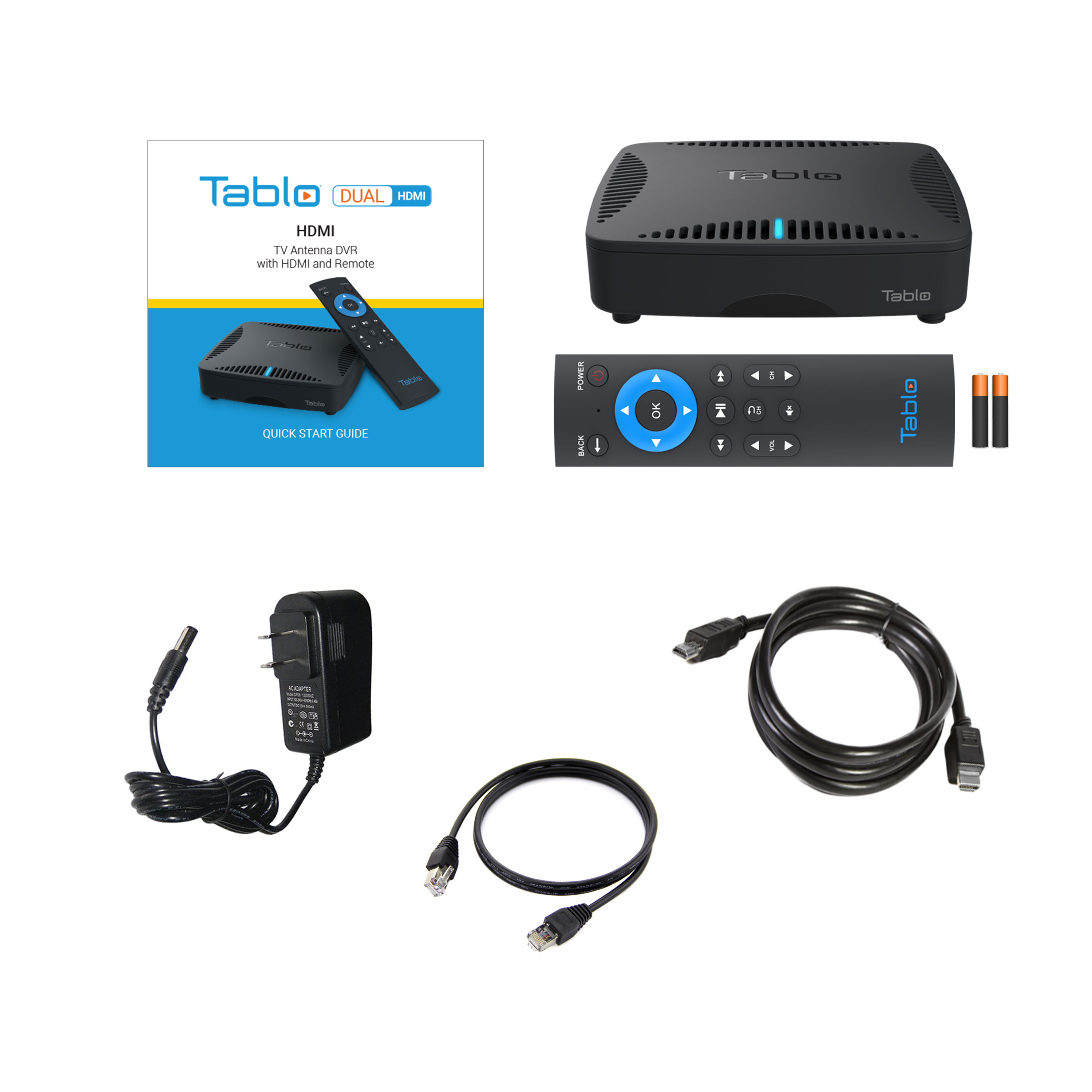

What's included in the box:

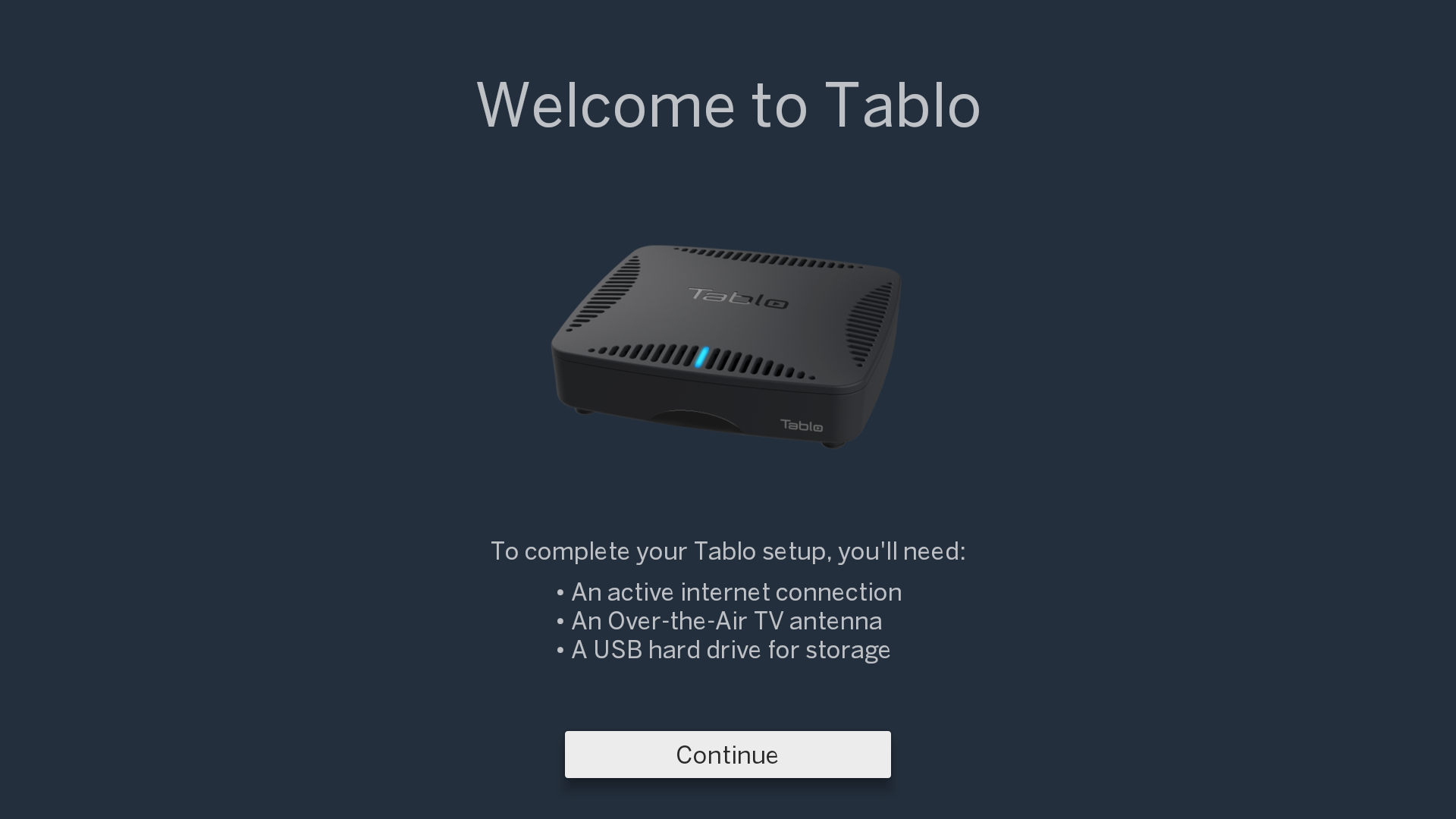

Once the Tablo DUAL HDMI or QUAD HDMI has booted up and your television has been switched to the appropriate input, you'll be greeted by the Welcome to Tablo screen below:

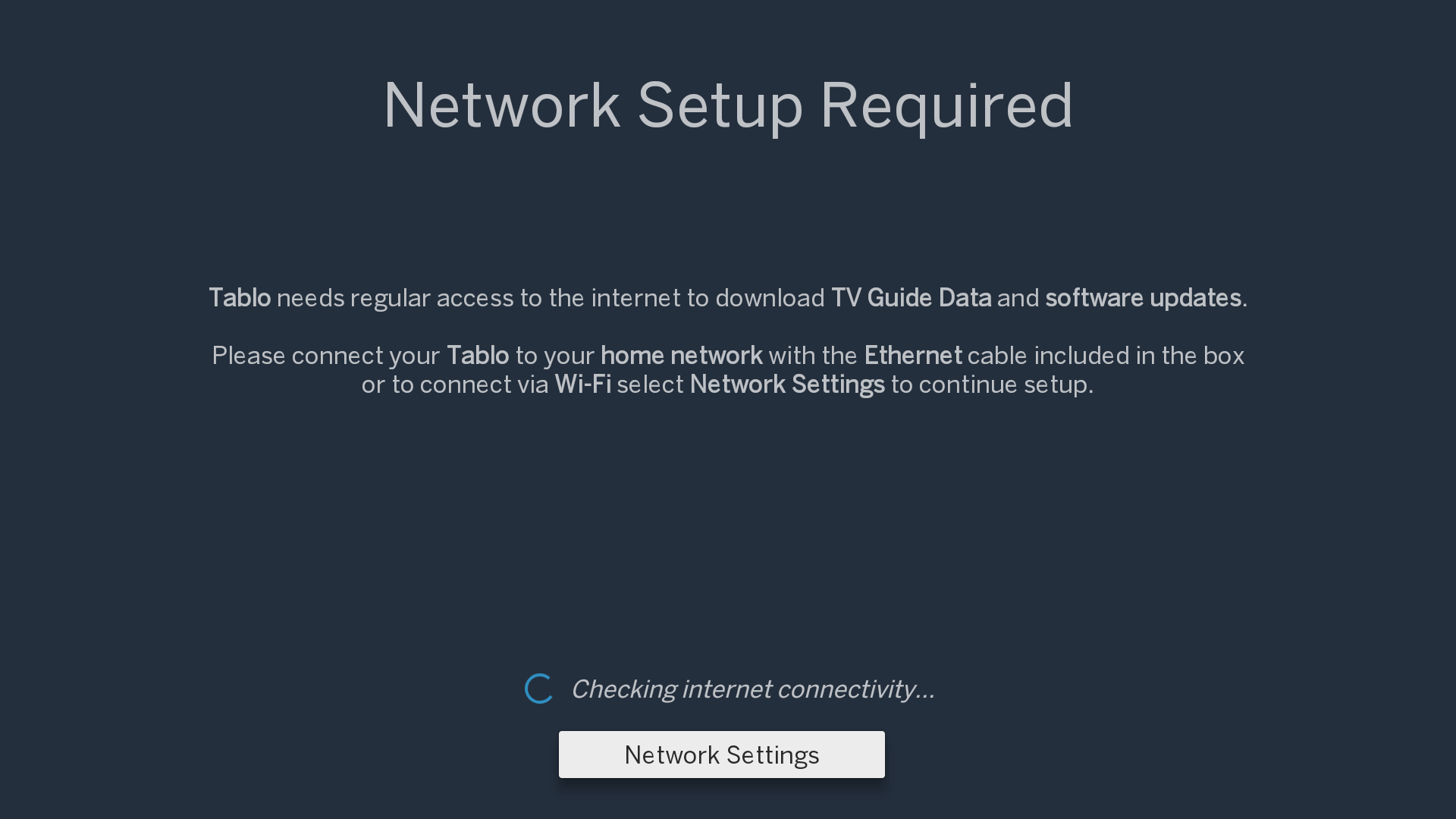

Then, the Tablo DUAL HDMI or QUAD HDMI will need to connect to your network either on Wi-Fi or Ethernet.

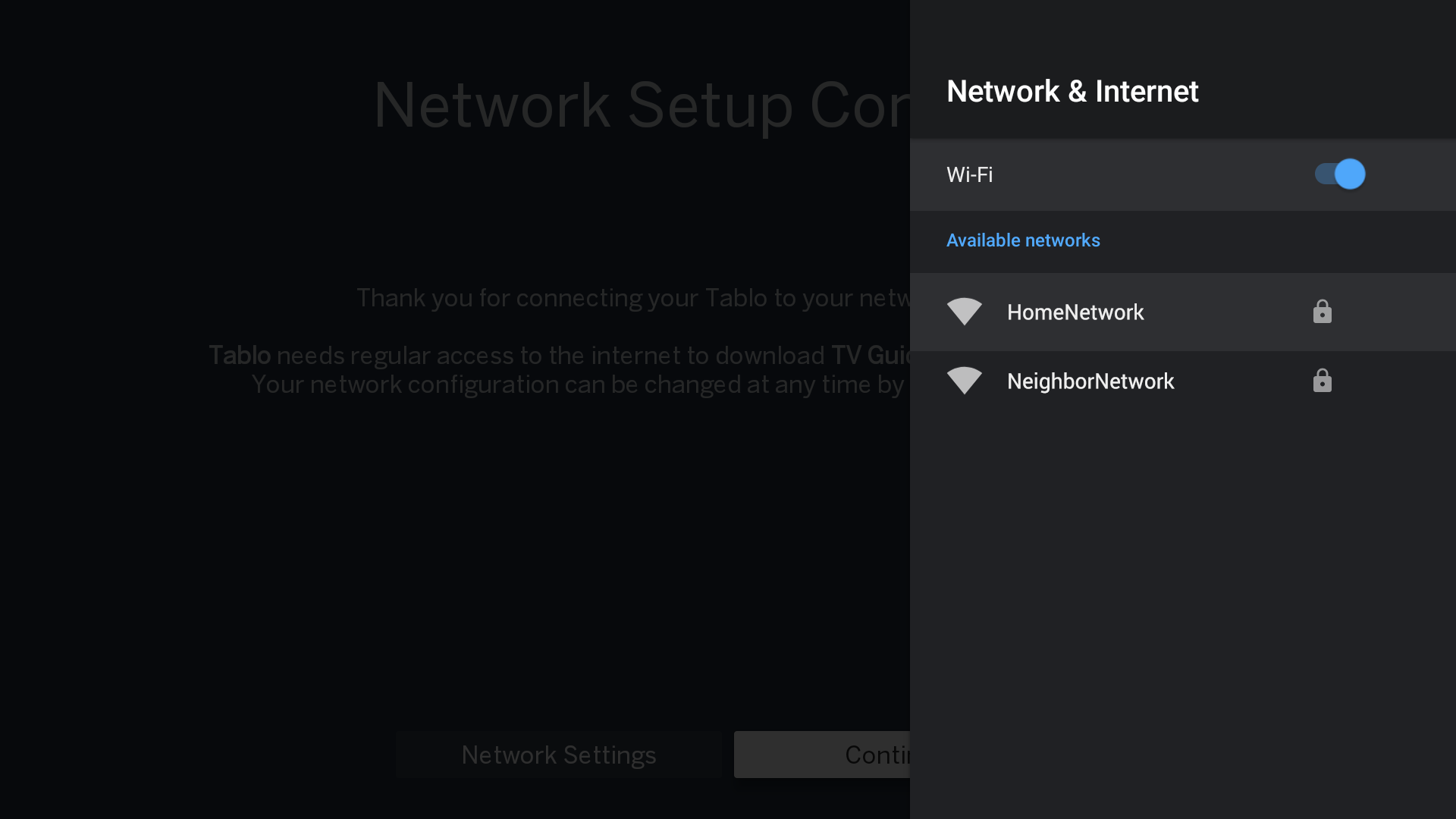

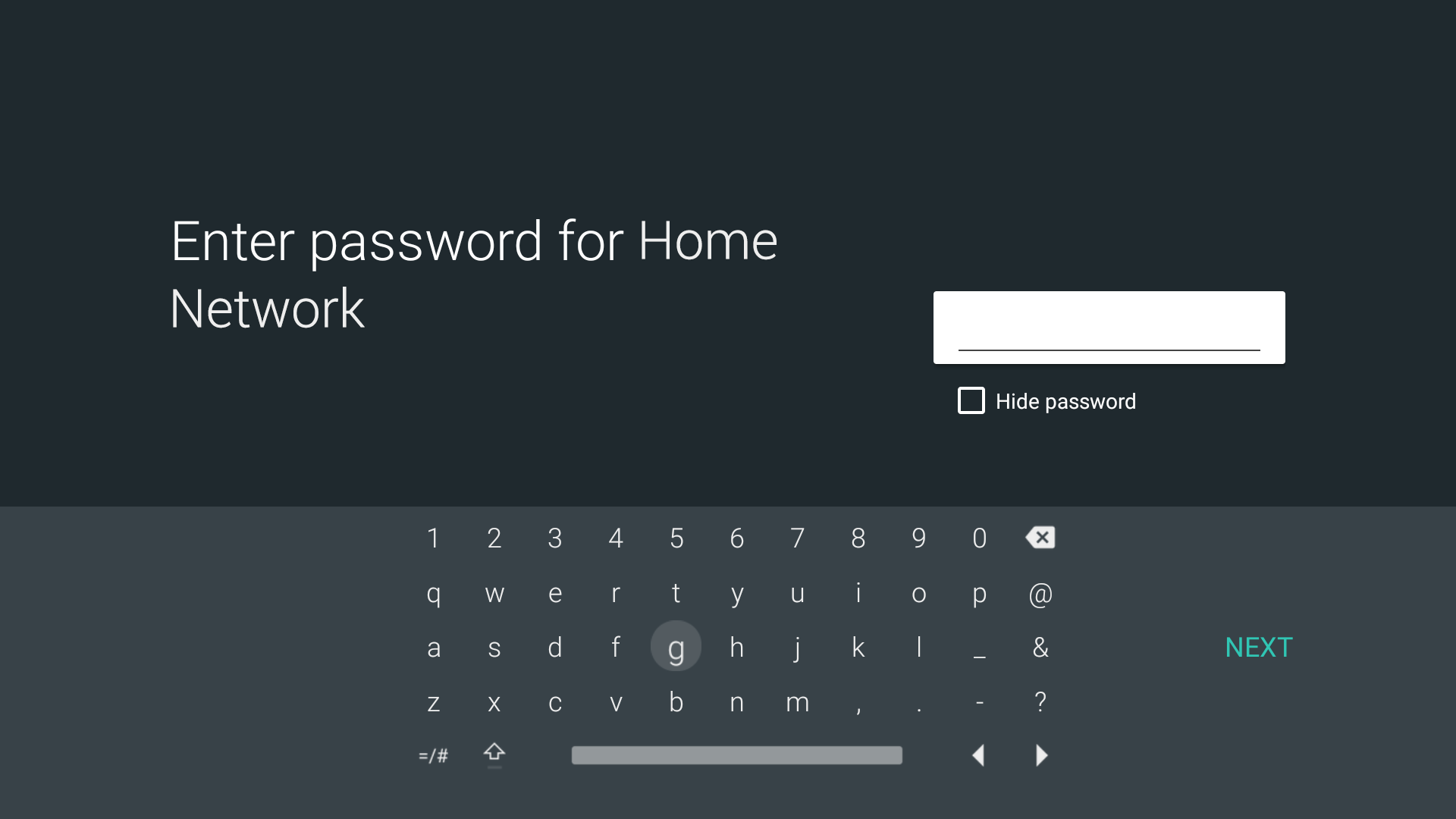

To setup on Wi-Fi, the Tablo DUAL HDMI or QUAD HDMI will run a network scan of the available networks nearby. Select your network from this list, enter your password and select CONTINUE to join the network.

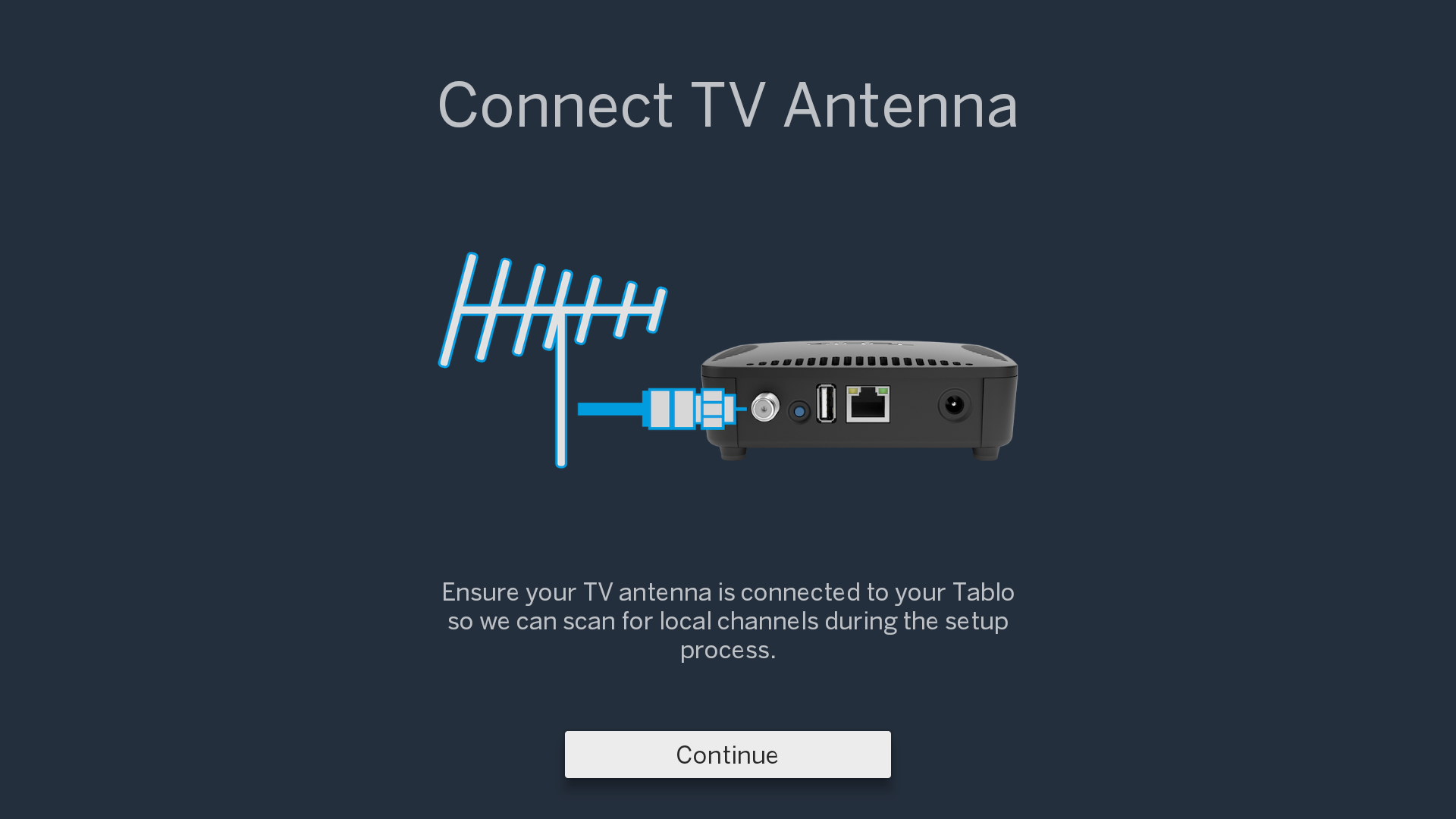

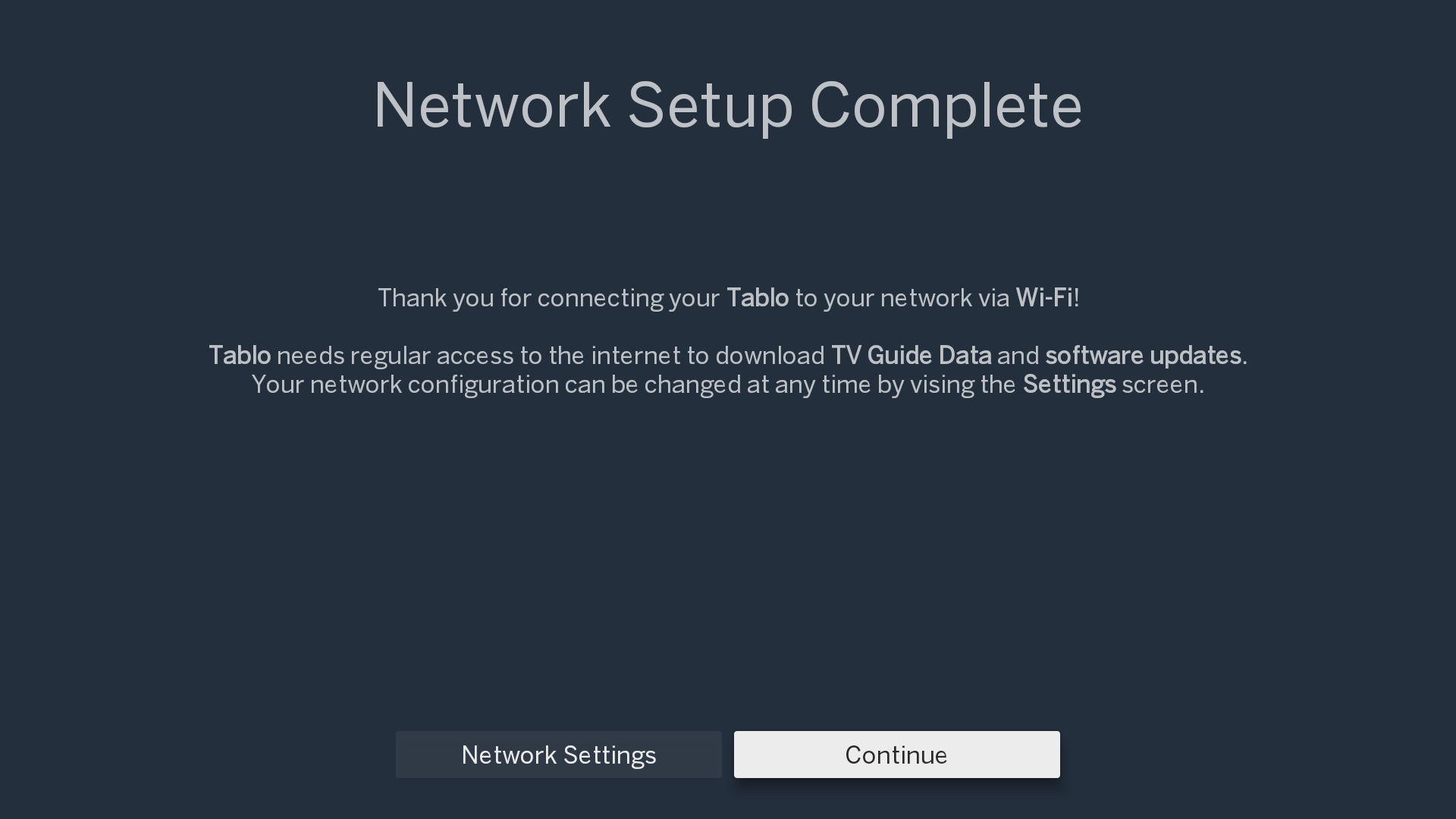

Once your Tablo DUAL HDMI or QUAD HDMI has successfully joined your network, you will be prompted to connect your OTA (over-the-air) TV antenna's coax cord to the Tablo DUAL HDMI's or QUAD HDMI's coax port.

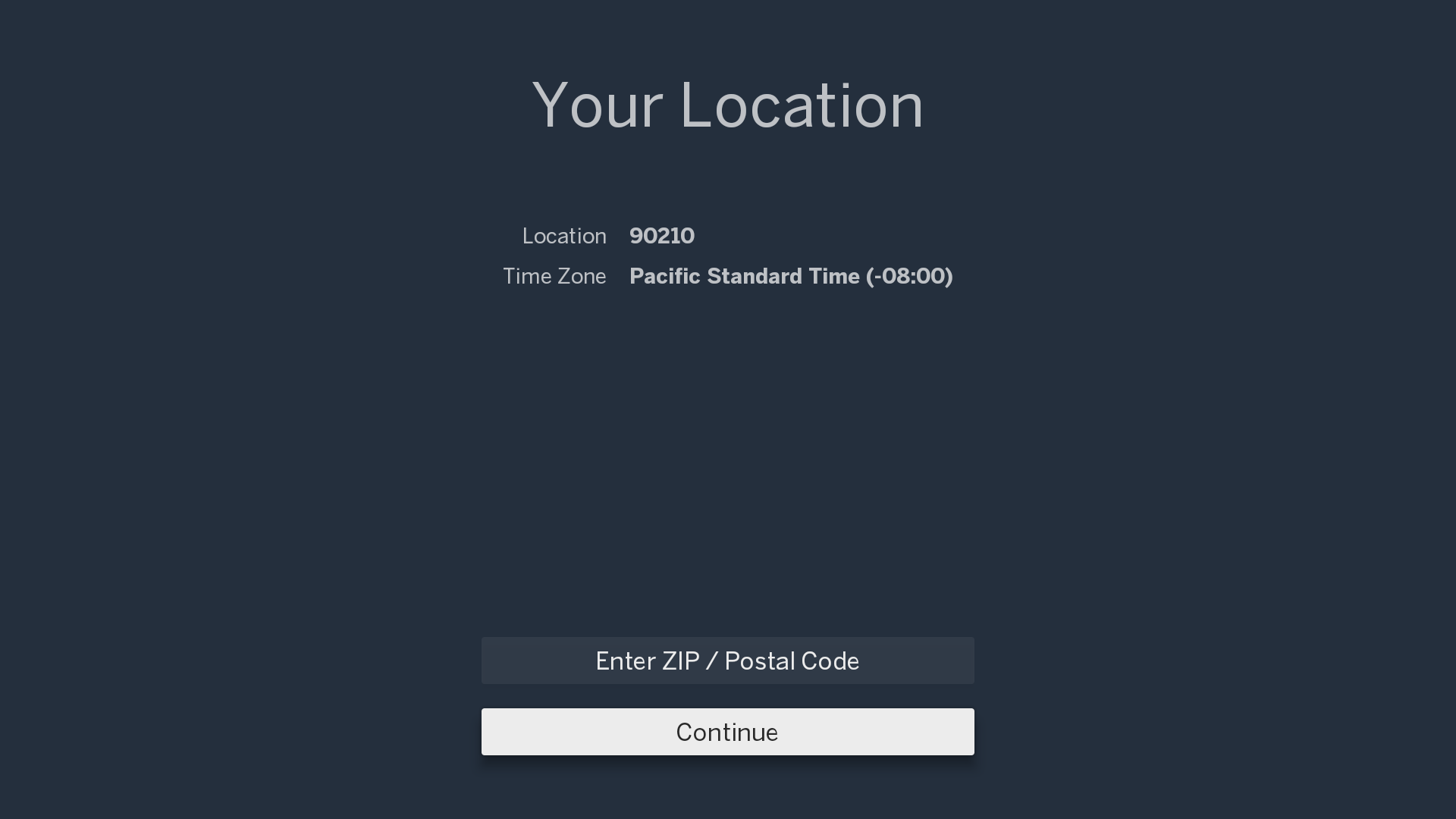

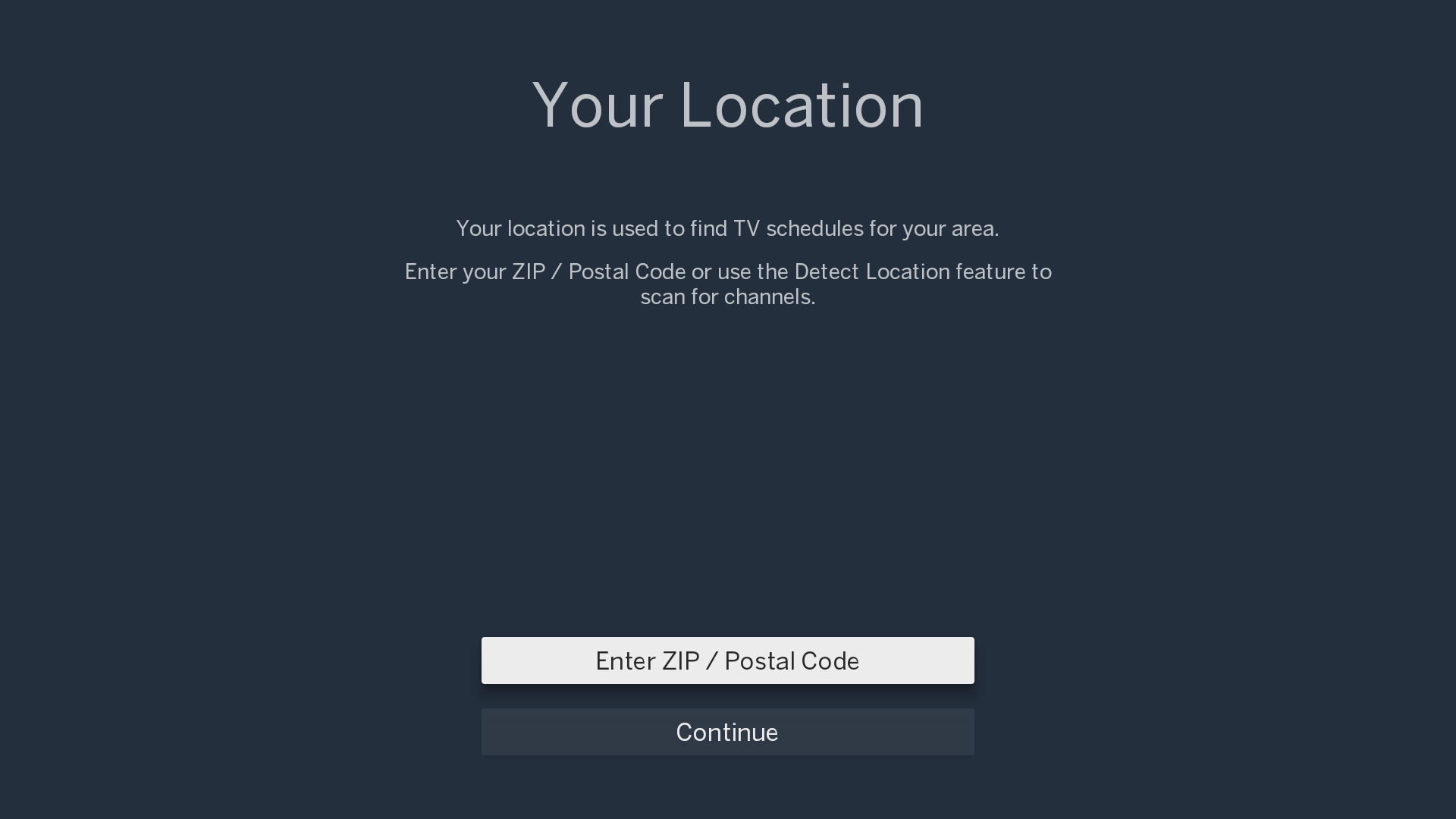

Once your antenna is attached, manually enter the zip code or postal code of your location. This is used to download the guide data for the OTA channels your antenna receives.
Once you've finished confirming your location settings, the Tablo DUAL HDMI or QUAD HDMI will prompt you to attach compatible storage.
USB Flash sticks are NOT compatible with Tablo DUAL HDMI or QUAD HDMI. To see what makes a hard drive compatible, visit this page.

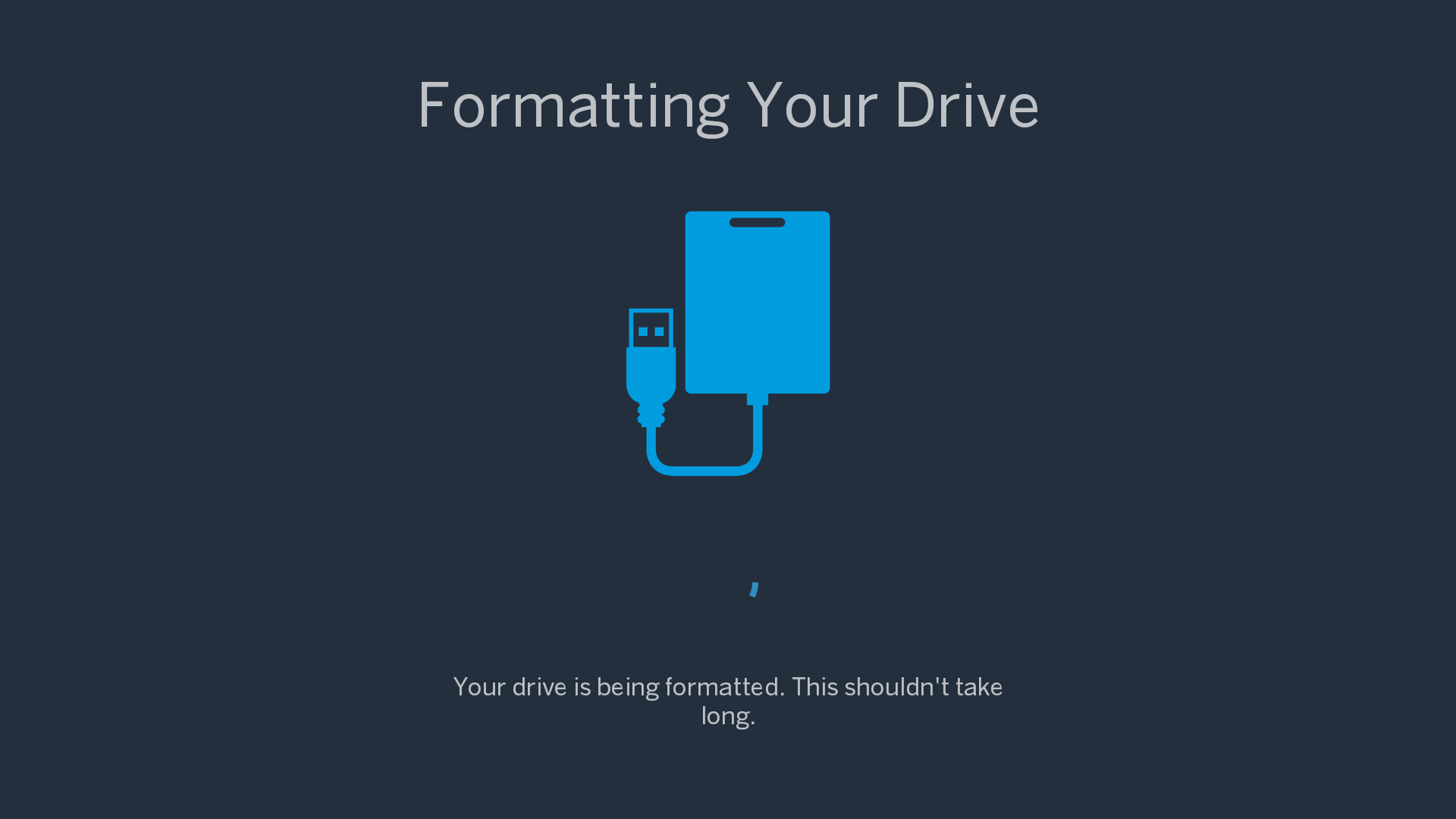

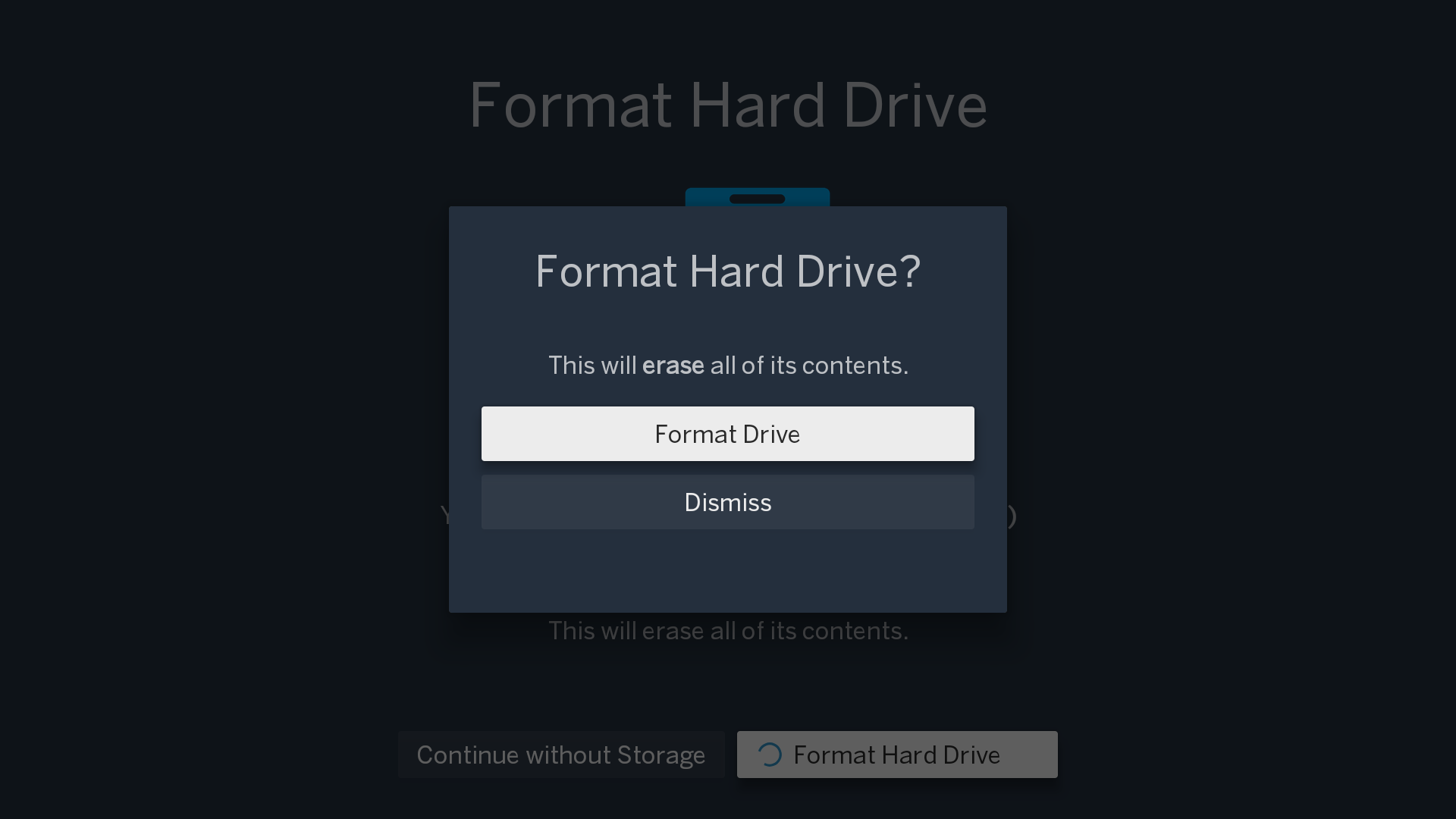

In order to use your hard drive to store recordings, the Tablo DUAL HDMI or QUAD HDMI will format the drive. The Tablo DUAL HDMI or QUAD HDMI will ask you to confirm the format process before proceeding as this will erase the contents of said drive.

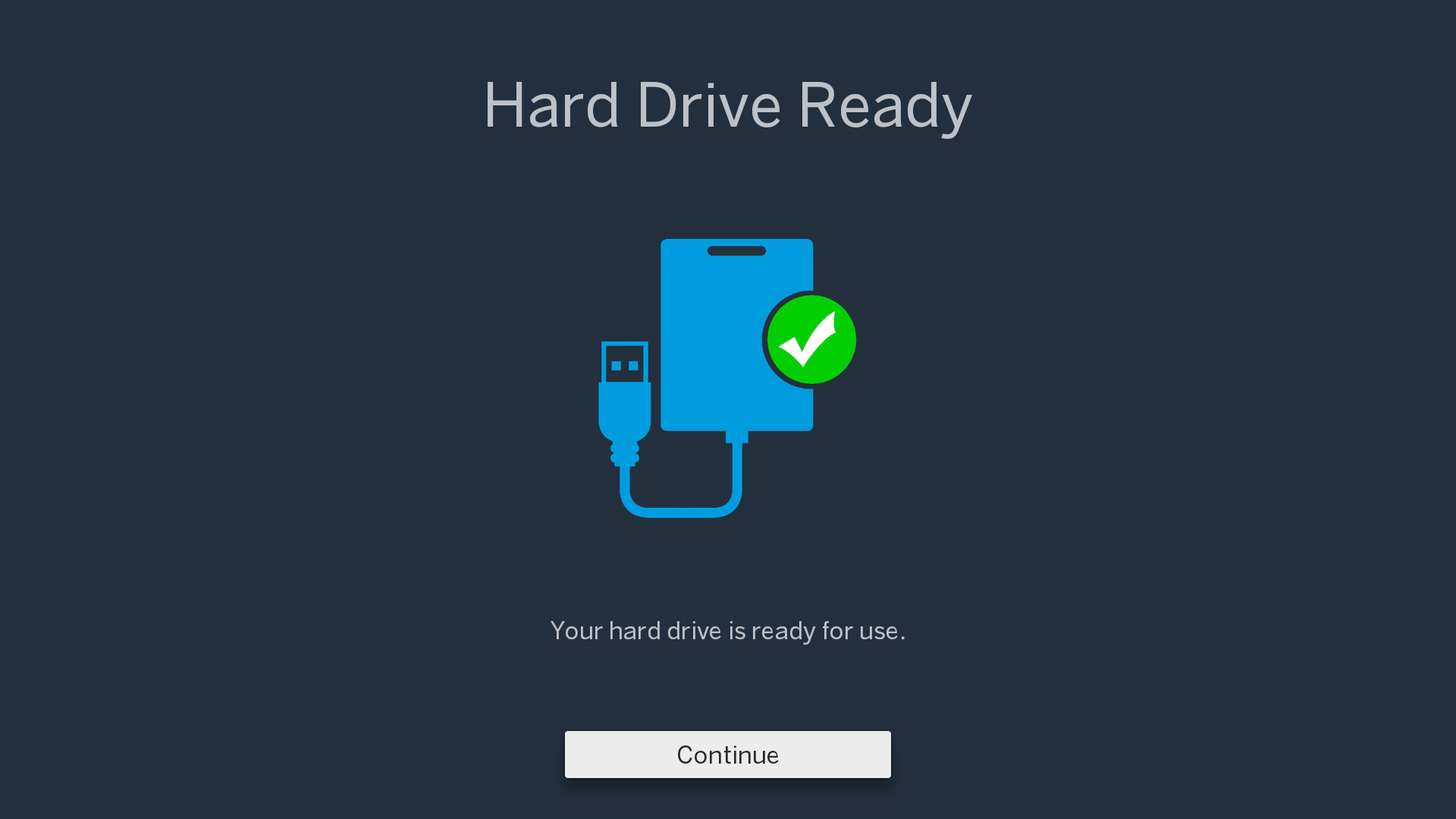

The Tablo DUAL HDMI or QUAD HDMI will display this screen when the hard drive format has completed.

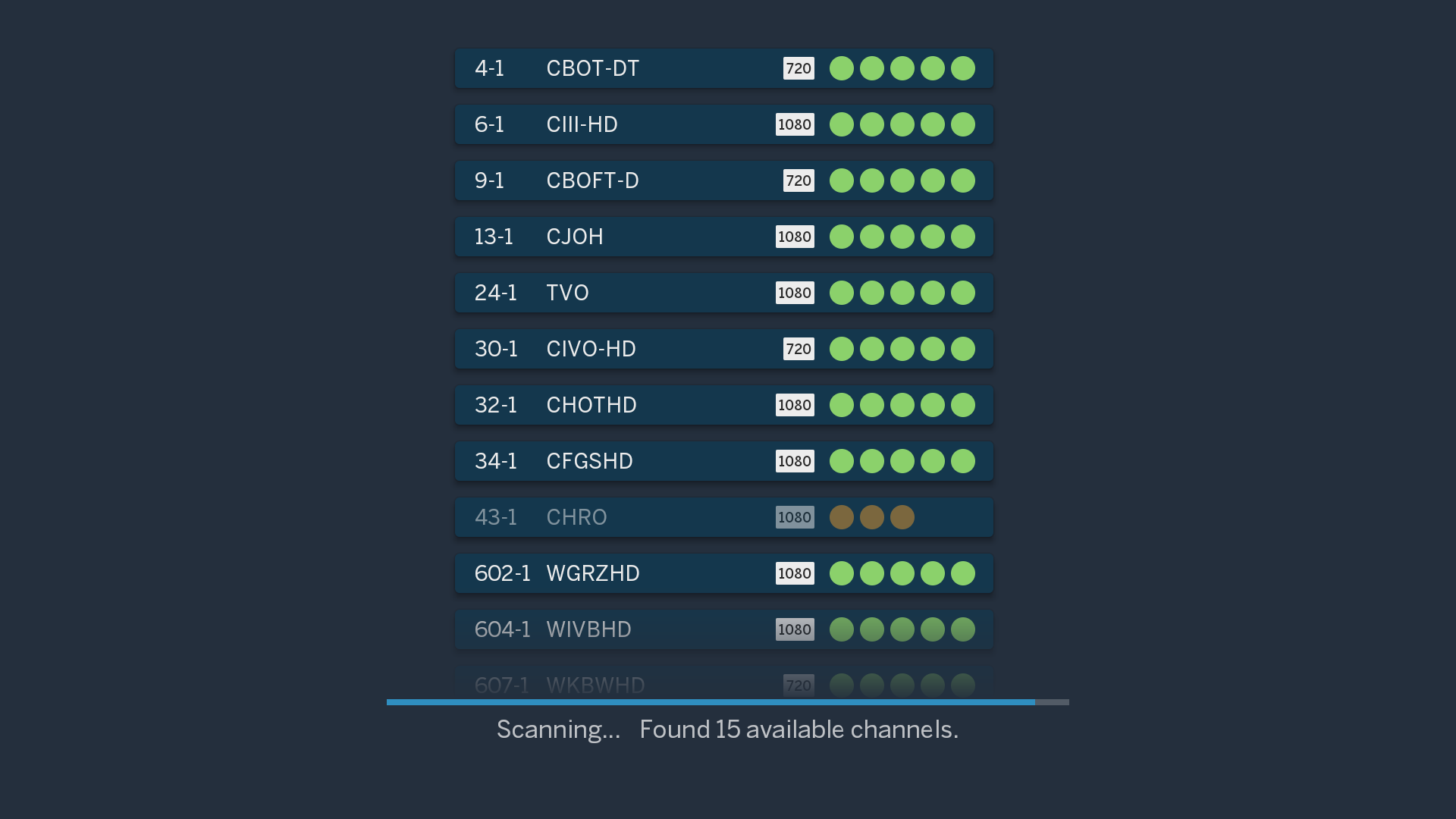

Next, the Tablo DUAL HDMI or QUAD HDMI will conduct its first OTA channel scan. This process may take a few minutes depending on your reception.
You may want to scan several times with different antenna positions or orientations to maximize your channel selection. To start another scan, click RESCAN.

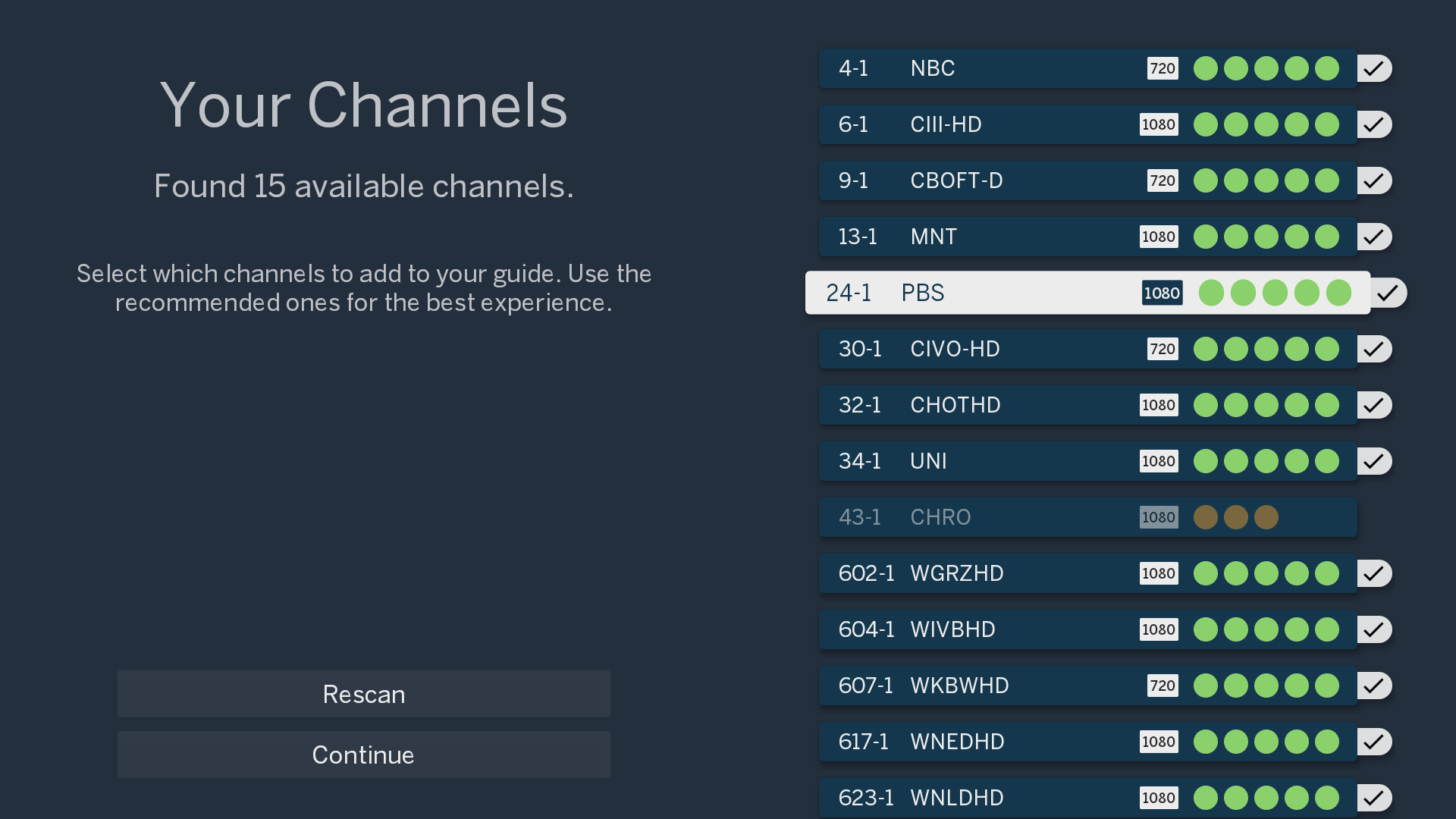

Once you are satisfied that you are receiving the most available channels, you can enable or disable individual channels by selecting them individually. The Tablo DUAL HDMI or QUAD HDMI will automatically add checkmarks to channels broadcast in high definition and channels with strong OTA reception.
Only channels with a checkmark will be enabled to watch live and to record programs. At this time, if there are channels you don't plan to watch that have a checkmark, you may remove them by selecting the checkmark.
When you are satisfied with the channel list, click the CONTINUE button to move to the final step.

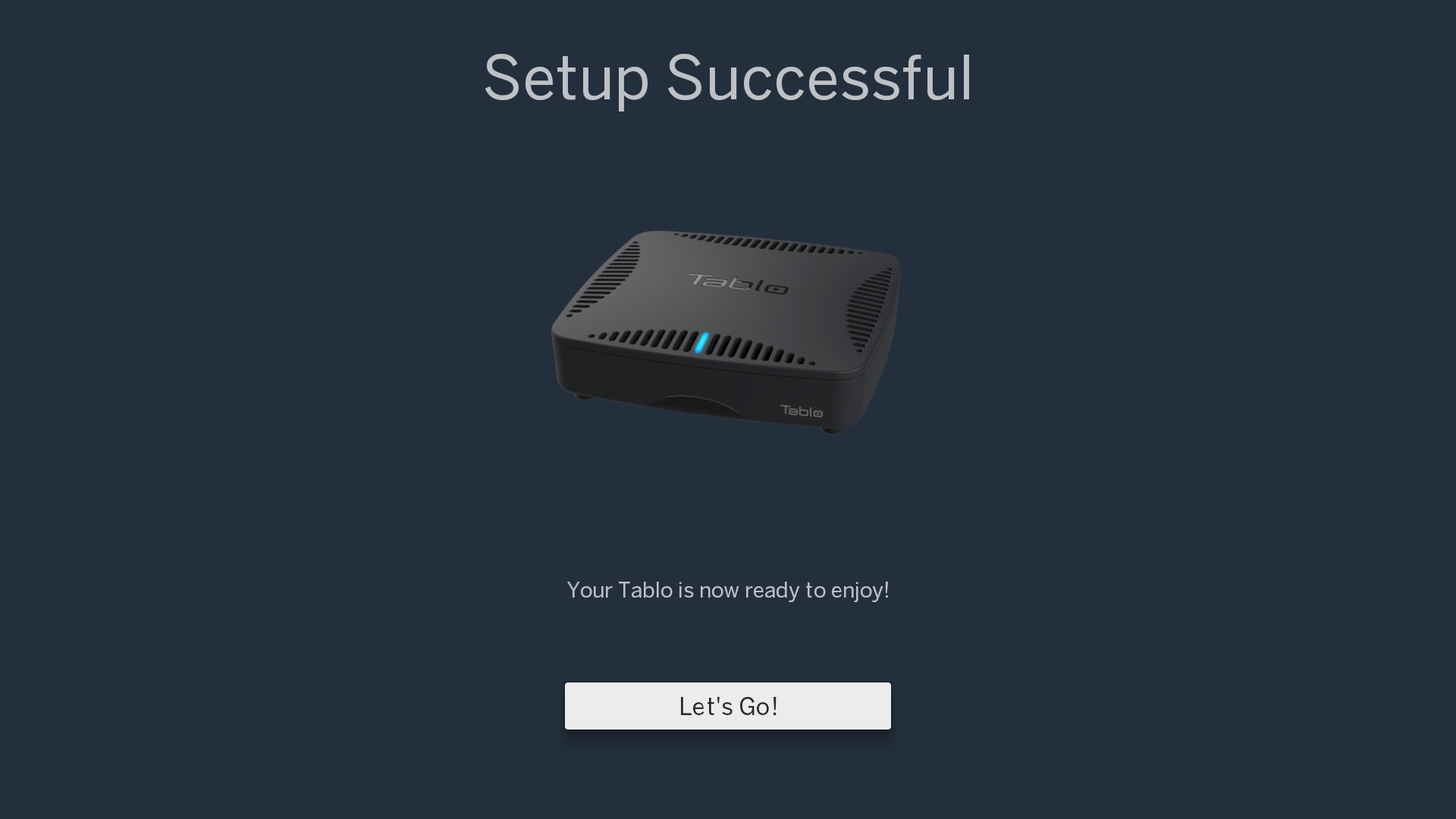

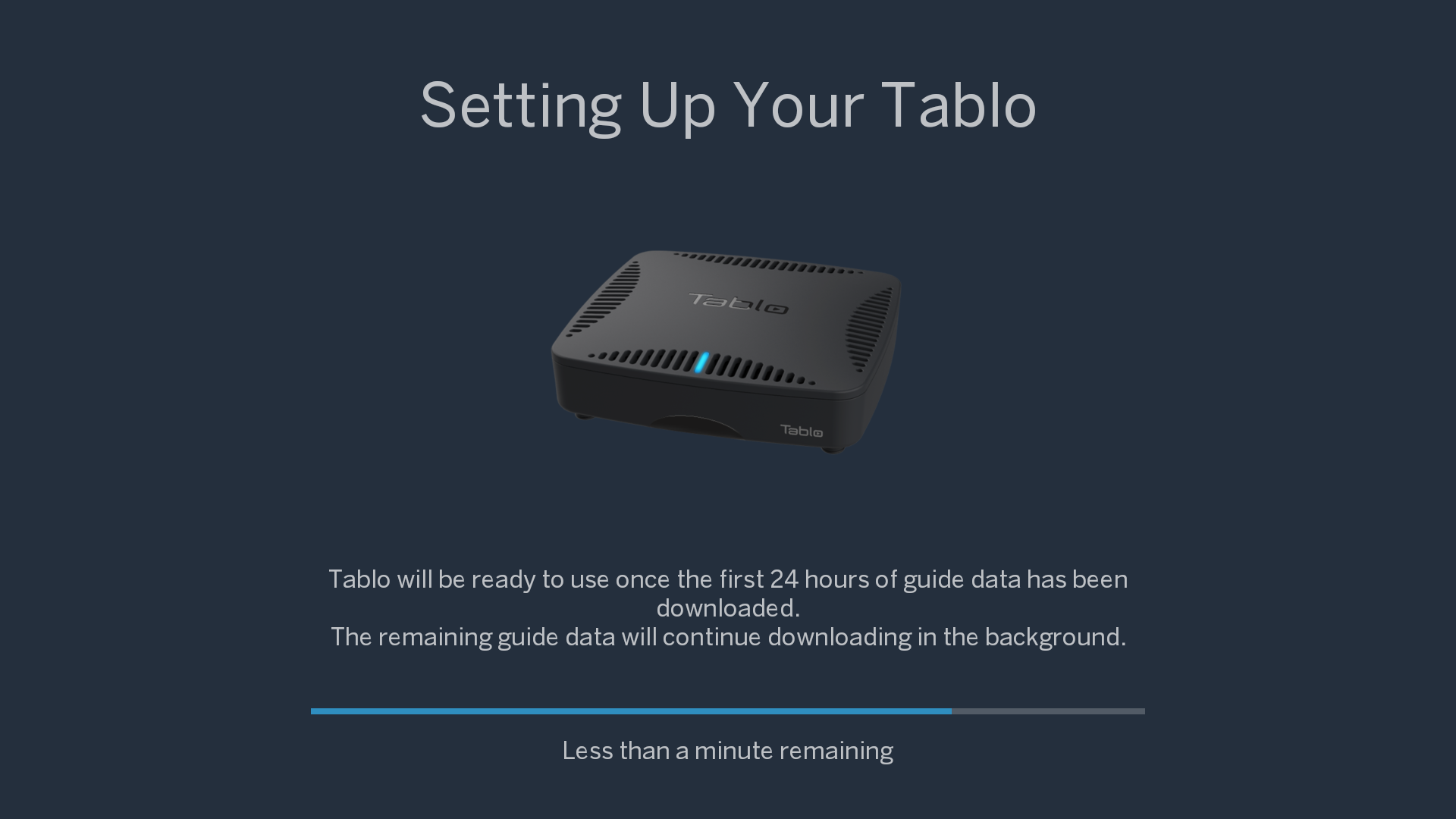

Your setup is complete! You can now begin to enjoy OTA content on your Tablo DUAL HDMI or QUAD HDMI.
