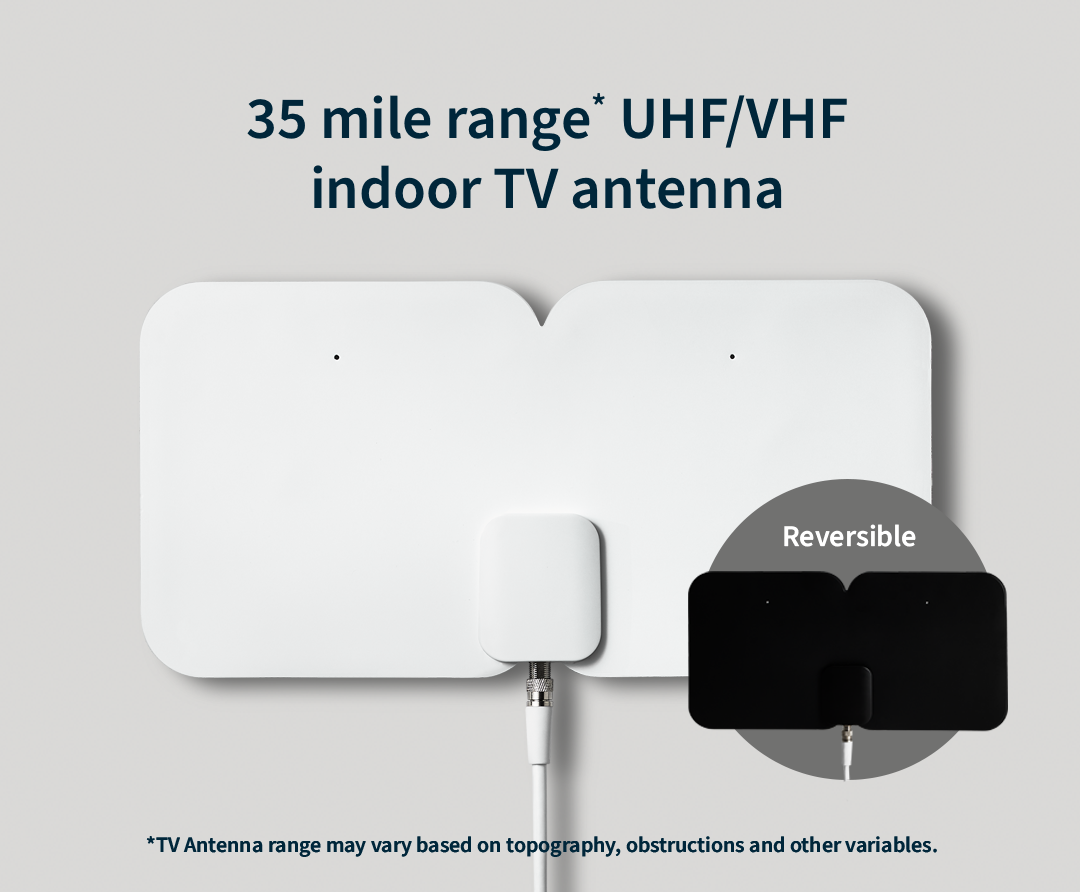

If you're just getting started with over-the-air television and don't already have a TV antenna, the Tablo Total System package may be right for you. The package includes a flat indoor TV antenna with a 35-mile range and a Tablo device.
Total System Technical Specifications
- Reception Range: 35 miles - May vary given topography and interference
- Frequency Range: 87.5-230MHz, 470-862MHz
- Receiving Range: VHF/UHF
- Gain - 4-5dB
- Impedance - 75Ω
Is the Tablo Total System Antenna Right for Me?
The TV antenna bundled with the Tablo Total System is right for you if:
- You don't already have a TV antenna that works well.
- You live less than 35 miles from your local broadcast towers.
- Your local broadcast towers are clustered in a single area.
- You're looking for something unobtrusive and easy to install.
- You have a window facing your local broadcast towers where you can place the antenna.
The TV antenna bundled with the Tablo Total System is NOT right for you if:
- You already have a TV antenna that works well (all commercial TV antennas are compatible with Tablo).
- You live further than 35 miles from your local broadcast towers.
- Your local broadcast towers are in two or more clusters, in opposite directions from your home.
- One or more of your local channels are broadcast in the low VHF range.
- You have no windows facing your local towers and your home’s walls are made of metal, brick or concrete.
For guidance on selecting the right TV for your needs, see this article.
Tablo Total System Antenna Q&A
How do I install the Total System antenna?
Our iOS and Android Mobile apps will walk you through setting up your Total System antenna.
Should I remove the plastic film from the outside of the Tablo Total System antenna?
Once the antenna is in your hands, its protective film has served its purpose. Remove and discard it.
The Tablo Total System antenna has a white and a black side. Which side should face the broadcast towers?
There is no 'correct' side to face your local broadcast towers. The white and black options allow you to choose the side that matches your decor.
Does the antenna included in the Tablo Total System come with mounting hardware?
Yes, you'll find adhesive strips and cable management hooks. Consider completing the initial setup of your Tablo before using the strips to secure the antenna in case it needs to be moved to improve reception. Once you have confirmed your TV antenna is in optimal location, use the strips freely, as they won't block broadcast signals.
Why is the coaxial cable included with the Tablo Total System's antenna so rigid?
RG6 coaxial cable is fairly rigid as it uses a heavier gauge wire core for better signal transfer and includes additional insulation and shielding to prevent interference. While this makes the cable harder to bend, it offers better performance and will last longer than more flexible, lower-quality coaxial cabling. Avoid overbending the cable during installation. The included cable management hooks should help guide it to your Tablo.
